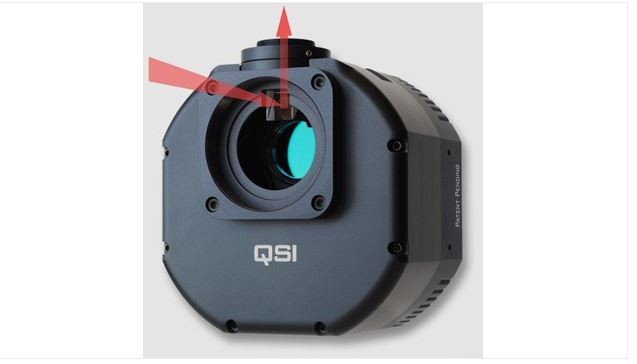

QSI 628WSG MONO CCD CAMERA - MECHANICAL SHUTTER, 5-POSITION FILTER WHEEL & INTEGRATED GUIDER PORT

QSI 628WSG MONO CCD CAMERA - MECHANICAL SHUTTER, 5-POSITION FILTER WHEEL & INTEGRATED GUIDER PORT
₹473,880
SPECIAL ORDER
OR
Additional Information

Additional Information

Brand QSI
CAMERA WEIGHT 2 lbs. 14 oz.
FOCUS DISTANCE TO SENSOR 2.10" (53.3mm) with 2.156" thread adapter (optional), 1.98" (50.2mm) with T mounting adapter, 1.75" (44.5mm) w/o mounting adapter
MANUFACTURER QSI
OPERATING SYSTEM COMPATIBILITY Windows
SERIES QSI 600
COLOR OR B&W? Monochrome (B&W)
SENSOR TYPE Interline Transfer
PIXEL SIZE < 5 Microns
CHIP DIAGONAL 10.1mm - 12mm
SENSOR MANUFACTURER Sony
# OF SENSORS Single Sensor
SENSOR MODEL ICX674
CCD CLASS Standard
QUANTUM EFFICIENCY Peak: 77% at 560nm
PIXEL SIZE IN MICROMETERS 4.54 microns square
PIXEL ARRAY 1940x1460 active
SENSOR DIAGONAL 10.972mm
MINIMUM EXPOSURE TIME .0001 seconds
MAXIMUM EXPOSURE TIME 4 hours
INTEGRATED GUIDER? Yes, in camera
BINNING MODES 1x1, 1 x CCD Height (User Set), 2x2, 3x3, 4x4, 4 x CCD Height (User Set), 5x5, 6x6, 7x7, 8x8, 8 x CCD Height (User Set), 9x9
SHUTTER TYPE Digital & Mechanical
DARK CURRENT <0.002 electrons per second at -10°C
FILTER WHEEL Yes
INTERFACE USB 2.0
CAMERA COOLING TYPE Thermo-electric Cooling (TEC)
CAMERA BODY DIMENSIONS 4.45” x5.0” x3.08”
WARRANTY 1 Year Warranty
Included Items

Included Items

  • QSI 628 Camera with Mechanical Shutter
  • 5 Position Filter Wheel
  • Integrated Guider Port
  • T-Mount Camera Adapter
  • T-Mount Adapter Cover
  • T-Mount to 2" Nosepiece
  • 12VDC/ 90-240VAC Power Supply
  • 10 ft. USB 2.0 Interface Cable
  • 10 ft. Standard Guider Cable
  • QSI Installation CDROM
  • Drivers for MaximDL/CDC and CCDSoft
  • ActiveX Developer's Kit
  • Custom Fit Pelican Storage Case
