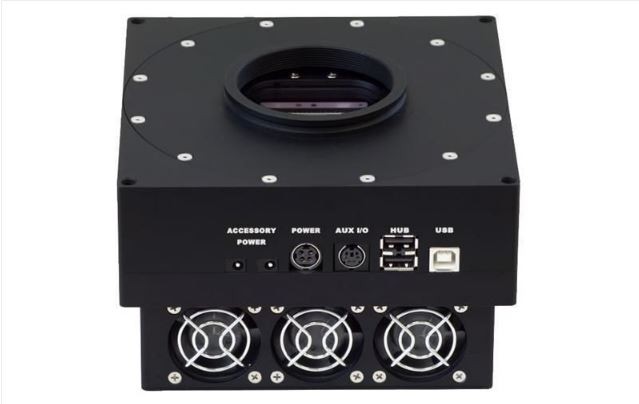

FLI PROLINE CCD CAMERA WITH E2V 77 GRADE 1 MIDBAND SENSOR & 63.5 MM SHUTTER

FLI PROLINE CCD CAMERA WITH E2V 77 GRADE 1 MIDBAND SENSOR & 63.5 MM SHUTTER
₹1,754,940
SPECIAL ORDER
OR
Additional Information

Additional Information

Brand FLI
CAMERA WEIGHT 5.6 lb.
FRONT OR BACK ILLUMINATION Back Illuminated
MANUFACTURER FLI
OPERATING SYSTEM COMPATIBILITY Windows
SERIES FLI Proline
COLOR OR B&W? Monochrome (B&W)
SENSOR TYPE Full Frame
PIXEL SIZE > 9 Microns
CHIP DIAGONAL 16.1mm - 18mm
SENSOR MANUFACTURER E2V
# OF SENSORS Single Sensor
SENSOR MODEL CCD77-00
CCD CLASS Class 1
FULL WELL CAPACITY 350,000 e-
PIXEL SIZE IN MICROMETERS 24 μm
PIXEL ARRAY 512 x 512
SENSOR DIAGONAL 17.4 mm
SHUTTER TYPE Mechanical
DARK CURRENT <0.8 e-/pixel/sec @ -45ºC
INTERFACE USB 2.0
CAMERA COOLING TYPE Fan - Built In, Liquid Cooled - Optional
CAMERA BODY DIMENSIONS 6.2 x 6.2 x 3.8 (157.48 x 157.48 x 96.52)
WARRANTY 1 Year Warranty
